Name: Constant Current Adjustable LED Lighting 80W Ip67 36V 48V 80 Watts Led Driver Outdoor Waterproof Led Power Supply
Brand: Constant Current Adjustable LED Lighting 80W Ip67 36V 48V 80 Watts Led Driver Outdoor Waterproof Led Power Supply
SKU: MSD-CC-80W
Price: 13.80 USD
Availability: InStock
Rating: 4.9 (134 reviews)

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Warranty(Year): 5-Year

Lighting solutions service: Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Luminous Efficacy(lm/w): 100

Model Number: MSD-CC-80W

Output Power: 51 - 80W

Output Type: Single

Input Voltage: 220V

Output Frequency: N/A

Output Current: 1600mA/2200mA

Dimension: L163*W56*H35mm

Lifespan: >50000Hrs(25~30â„ƒ)

Capacitor: Rubycon

Warranty: 5years

Customized: yes

Application: LED Lighting

Type: waterproof led driver 700mA

Power: 80W max

Color: Black

Protection: OCP OVP SCP OPP

Informação básica

Model Number: MSD-CC-80W

Condições de Pagamento e Envio

Descrição de produto

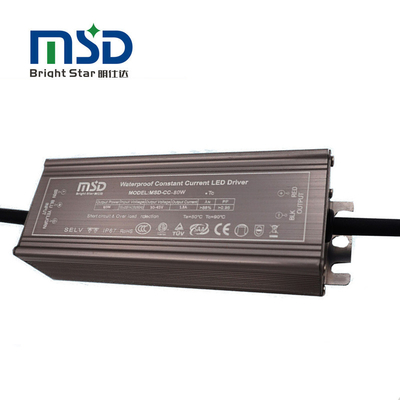

Aluminum shell Ip67 current adjustable 36V 48V 80 Watt Led Driver

Product Appearance

Specifications

Output mode		constant current (consant voltage available)
Output current (DC)		1600ma/2200ma for choice
Output voltage (DC)		45-60V/27-42V
Current Precision		±5%
Output Power		80W
Dimming way (for choice)		1.non-dimmable type 2.dimmable type: 0-10V, 1-10V, PWM, DALI, triac, push dimming
Input Voltage (AC)		AC100~265V (50/60Hz)
Power Factor		>0.95
Efficiency		>88%
Leakage Current		<2.5mA/240V AC
Operating Temperature		-40℃~+70℃
Working Humidity		10%~90%RH
Protection		Current Limiting,Over-voltage,Over-load,Short Circuit,Over Temperature
Safety Standard		UL1012,IP67 (IP20 available), EN61347,AS/NZS IEC 61347.2.13:2013 AS/NZS 61347.1
EMC Standard		EN55015, AS/NZS CISPR 15,EN61000,EN61547
Lifespan		>50000 Hours
No Load Power		<1W
Capacitor		Rubycon
MOSFET		Fairchild
Filler		Silicon Gel

Advantages

1.Offer 5 years warranty.
2.OEM and ODM are welcome.

3.Professional team will follow the whole after-sale.

4.Free shipping charge for exchange goods.
5.A variety of shipping methods for your choice.
6.Prompt delivery and professional after-sales service.
7.2~3 times burn-in tests with 100% full load for more than 24 hours.

8.Output current,output voltage,power,etc can be customized as per your requirements.

We always have materials in stock,delivery time is very short!!!

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

constant current LED driver LED power supply

Model number	Input Voltage	Output Voltage	Output Current	Output Power
MSD-CC-20W	AC100-265V	DC 28-36V	600mA	20W
		DC 14-22V	900mA
		DC 13-19V	1050mA
MSD-CC-30W	AC100-265V	DC 33-43V	700mA	30W
		DC 28-36V	900mA
		DC 24-32V	900mA
		DC 20-28V	1200mA
		DC 18-25V	1200mA
		DC 20-28V	1050mA
		DC 12-20V	1500mA
		DC 12-18V	1800mA
MSD-CC-40W	AC100-265Vz	DC 15-20V	2000mA	40W
		DC 15-22V	1800mA
		DC 20-26V	1500mA
		DC 26-33V	1200mA
		DC 28-36V	1200mA
		DC 35-42V	900mA
		DC 40-48V	850mA
MSD-CC-45W	AC100-265V	DC 85-130V	350mA	45W
		DC 45-65V	700mA
		DC 28-43V	1050mA
		DC 32-40V	900mA
		DC 29-37V	1200mA
		DC 22-30V	1500mA
MSD-CC-50W	AC100-265V	DC 15-24V	2400mA	50W
		DC 18-25V	2100mA
		DC 20-28V	1800mA
		DC 28-36V	1500mA
		DC 35-42V	1200mA
		DC 45-60V	900mA
MSD-CC-60W	AC100-265V	DC 20-28V	2100mA	90W
		DC 28-36V	1800mA
		DC 30-42V	1400mA
		DC 35-42V	1500mA
		DC 40-52V	1200mA
		DC 48-57V	1050mA
		DC 60-72V	900mA
MSD-CC-70W	AC85-265V	DC 28-36V	2100mA	70W
		DC 35-42V	1800mA
		DC 40-52V	1500mA
		DC 21-30V	2400mA
		DC 18-24V	3000mA
		DC 12-21V	3500mA
MSD-CC-80W	AC100-265V	DC 20-28V	3000mA	80W
		DC 28-36V	2400mA
		DC 35-42V	2100mA
		DC 40-52V	1800mA
		DC 45-60V	1500mA
		DC 60-72V	1200mA
MSD-CC-90W	AC100-265V	DC 50-60V	1500mA	90W
		DC 40-50V	1800mA
		DC 35-45V	2000mA
		DC 27-37V	2400mA
		DC 23-33V	2700mA
MSD-CC-100W	AC85-265V	DC 12-20V	4800mA	100W
		DC 28-36V	3000mA
		DC 35-42V	2400mA
		DC 45-60V	1800mA
		DC 60-72V	1500mA
		DC 90-110V	900mA
MSD-CC-120W	AC100-265V	DC 15-24V	5400mA	120W
		DC 20-28V	4500mA
		DC 28-36V	3600mA
		DC 35-42V	3000mA
		DC 40-52V	2400mA
		DC 45-60V	2100mA
MSD-CC-140W	AC100-265V	DC 80-93V	1500mA	140W
		DC 48-58V	2400mA
		DC 36-46V	3000mA
		DC 30-39V	3600mA
		DC 25-35V	4000mA
		DC 23-33V	4200mA
MSD-CC-150W	AC100-265V	DC 28-36V	4500mA	150W
		DC 28-36V	4200mA
		DC 35-42V	3600mA
		DC 40-52V	3000mA
		DC 40-54V	3000mA
MSD-CC-160W	AC100-265V	DC 60-72V	2100mA	160W
		DC 60-72V	2400mA
		DC 90-110V	1500mA
MSD-CC-180W	AC100-265V	DC 28-36V	5400mA	180W
		DC 35-42V	4500mA
		DC 40-52V	3600mA
		DC 50-65V	3000mA
		DC 60-72V	2700mA
		DC 90-110V	1800mA
MSD-CC-200W	AC100-265V	DC 20-28V	7500mA	200W
		DC 28-36V	6000mA
		DC 35-42V	4800mA
		DC 40-52V	4200mA
		DC 45-60V	3600mA
		DC 60-72V	3000mA
MSD-CC-240W	AC100-265V	DC 20-28V	9000mA	240W
		DC 28-36V	7200mA
		DC 35-42V	6000mA
		DC 40-52V	4800mA
		DC 60-72V	3600mA
		DC 75-90V	3000mA
		DC 90-110V	2400mA
MSD-CC-250W	AC100-265V	DC 75-85V	3000mA	250W
MSD-CC-250W	AC100-265V	DC 30-36V	7000mA	250W
MSD-CC-280W	AC100-265V	DC 85-95V	3000mA	280W
MSD-CC-300W	AC100-265V	DC 20-28V	12000mA	300W
		DC 28-36V	9000mA
		DC 40-52V	6000mA
		DC 50-60V	5000mA
		DC 60-72V	4500mA
		DC 90-110V	3000mA
MSD-CC-400W	AC100-265V	DC 30-36V	11000mA	400W
		DC 57-65V	6100mA
		DC 57-68V	5800mA
		DC 60-72V	5500mA
		DC 63-76V	5200mA

Packaging

Other packaging are customizable according to your requirement.

Certifications

Why choose us?

Trade Shows

Company Information

Established in 2008, Shenzhen Bright Star Lighting Co.,Ltd is a rapidly growing up exported-oriented high-tech enterprise as well as a company of energy saving&carbon reducing during development encouraged by "Twelve-Five planning" of Chinese government,with many years development and innovation,we have been approved by lots of famous companies from domestic and overseas and built long-term strategic cooperation relationships!

We are in a chain of R&D,professional production,sales and after-sale service,covering wide range of different kinds of LED drivers/power supplys such as outdoor waterproof LED drivers, indoor LED drivers,0-10V dimmable LED drivers, DALI LED drivers,WIFI,Bluetooth,Zigbee controlled LED drivers, and now striding forward to intelligent lighting conforming to trend of "internet of things" ,our products are mainly used in led street light, LED tunnel light, LED flood light, spot light, panel light and high-power led lamps etc,the projects we mainly do are hotels,hospitals,schools,plant greenhouse,animal breeding-house,fishing boats etc.

We are oriented by requests of customers,with "responsibility,passion,innovation,high efficiency"as our style,with"cooperation,integrity,win-win,long-term"as our ideas,with"quality&service first" as our principle,until now,our customers are from more than 150 countries covering Europe,North America,South America,Australia,especially our dimmable LED drivers and intelligent controlling LED drivers are the top popular products in the market,in addition,we have applied for lots of certificates such as LVD,SAA,ETL,CCC...more and more customers of meanwell,MOSO have come to us and built long-term cooperation relationships.

We always do believe"whatever is worth doing is worth doing well".
