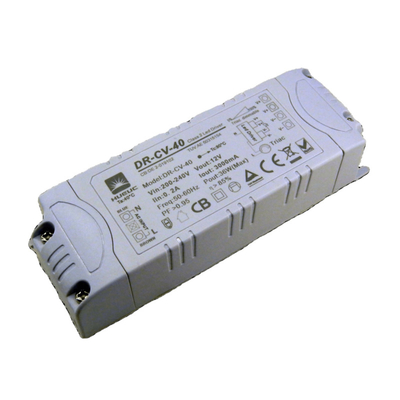

Name: Small size 3A 2A 1A 0-10V led driver 12V dimmable led light driver OR Triac dimming led driver from 12W 24W 50W
Brand: Small size 3A 2A 1A 0-10V led driver 12V dimmable led light driver OR Triac dimming led driver from 12W 24W 50W
SKU: DR-CV-XX
Price: 1 USD
Availability: InStock
Rating: 4.6 (160 reviews)

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Warranty(Year): 5-Year

Model Number: DR-CV-XX

Output Power: 9W - 300W

Output Type: Single

Input Voltage: 110V/220V

Output Frequency: 50/60Hz

Output Current: 1500 MA, 3000 ma, 1800 MA, 1200 MA

Application: LED Lighting

Product Name: Dimmable Led Driver

Power: 9W-300W

Output Voltage: 12V/24V/36V/48V

Efficiency: â‰¥85%

Power Factor: 0.95

Protections: Short Circuit, Overload, Overvolt, Overcurrent

Feature: Small Size

Certificação: ETL SAA CE ROHS TUV

IP Rate: IP20/IP67

Informação básica

Certificação: ETL SAA CE ROHS TUV

Model Number: DR-CV-XX

Condições de Pagamento e Envio

Packaging Details: Neutral Package, or customized packing.

Supply Ability: 10000 Piece/Pieces per Week

Descrição de produto

3A 2A 1A 0-10V led driver dimmable 12V led light driver OR Triac dimming led driver from 12W 24W 50W

Product Overviews

Output Power	9/12/18/20/24/30/33/40/60/80/100/150/180/240 to 300w (Customized)
AC Input	85v,90v,110v,130v,180v,220v,240v,265v,300V (Customized)
DC Output	12v-80V (Customized)
Dimming type	Triac, 0/1-10V, DALI, PUSH, PWM, 2.4G wireless, Zigbee (Optional)
IP Class	IP20, IP66, IP67 (Customized)
Certificate	ETL, UL, FCC, TUV-GS, CE, RoHS, CB, SAA (Optional)
Life time	50,000 hours

The technical parameters above is only for your reference, please contact us for more infprmation.

Product Description

Dimming type	Triac 0/1-10V PUSH DALI PWM RF Zigbee
	Dimming Range	0% -100%,Flicker free, Noise free, Smooth dimming
	Approved Dimmers	Lutron, Leviton, Euchips, Scnendais, Kaoyi
Input	Voltage range	90-130 &180-240VAC	In-Rush Current	30A/186μs
	Frequency range	50/60Hz	Max.THD(Full Load)	10%
	Power factor	>0.95	Time To Light(At230V)	<1S
	Full load efficiency	≥85%	Surge Protection	1KV
	No Load Power Consumption	0.8W
Output	Output mode	Constant Current / Constant Voltage
	Output voltage range	12-80V
	Rated power	9-300W (customized)
	Output LF Voltage Ripple (<120Hz)	±5%
	Output type	single
Protect	Short circuit protection	Intermittent restart mode, after the exception can be automatically restored
	Overcurrent protection	Vout*150%
	Overvoltage protection	< 270VAC
Environtment	Working Temp/Humidity	-30-45℃,5-95%RH
	Storage Temp/Humidity	-40-70℃,5-95%RH
	Temperature coefficient	±0.03%/℃(0-50℃)
	Vibration	5-55Hz/2g,30 Mimutes
Safety& EMC	Safety	EN60598
	Pressure	I/P-O/P:3KVAC IP-FG:1.88KVAC O/P-FG:0.5KVAC
	Insulation resistance	I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
	EMC Emission	EN55022,EN55015 Class B
	EMC Immanity	EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
Other	Level of protection	IP20, IP66, IP67
	Shell Material	Plastice, Aluminum, Metal

Application

Customized Solutions

Customized led driver

Huarui Lighting specialize in design, custom and manufacture power supply, Led driver , led power supply, led bulb driver, led transformer, dimmable led driver, including TRIAC led driver, 0/1-10V led driver, DALI led driver, PWM led driver, 2.4G wireless led driver, ZigBee led driver, Push led driver,Waterproof Driver,as well as non-dimmable led driver.

All of them can be fully and easily customized (see the process of customization optigzuoons listed below). We committed to offer high quality, high performance, cost effective options to meet customers demands. Choosing to customize one of the led drivers in our Product Categories now!
