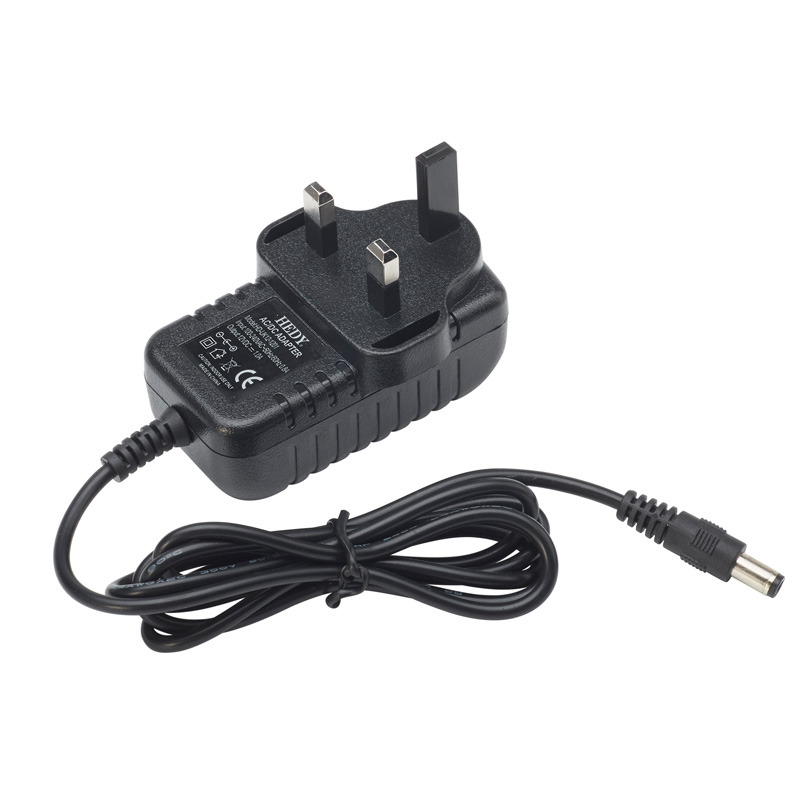

Product name: 12w ac dc 220v to 12v adapter
Output voltage: DC12V
Output current: 1a
Output power: 12w
Business type:Manufacturer/Factory
Warranty: 1 year
12w ac dc 220v to 12v adapter features:
v Universal AC input/Full range
v Protection: Short circuit/Overload /Over Voltage/Over Temperature
v Cooling by free air convection
v Bult-in constant current limiting circuit
v LED indicator for power on
v 100% full load bult-in test
12w ac dc 220v to 12v adapter specifications:
12v 1a power supply
| Name: | AC/DC Power Adapter |
| Input Voltage: | AC 100-240V |
| Output Voltage: | DC 12V 1A |
| Frequency range: | 50/60Hz |
| DC connector size: | 5.5*2.1mm or 5.5*2.5mm or others |
| Product Dimension: | 74*70*30 mm |
| Length of DC cable: | 0.9m (normal type) /1.2m/1.5m/1.8m/2m/3m |
| Conversion efficiency: | ≥ 80% |
| Ripple & Noise: | (mVp-p): < 1% |
| Line Regulation: | ± 0.5% max |
| Load Regulation: | ± 1% max |
| Temperature coefficient: | ± 0.03% (0 ~ 50°C) |
| Start time: | ≤ 3s (240VAC input, io=100%) |
| Guard time: | ≥ 20ms (240VAC input, io=100%) |
| Protection: | Over current/Over voltage/Short circuit protection |
| Working temperature: | -20°C ~ 50°C |
| Storage temperature: | -30°C ~ 75°C |
| Humidity: | 0% ~ 95% RH |
| Warranty: | 1 year |
12w ac dc 220v to 12v adapter applications:
1. CCTV camera/DVR
2. Set Top Box
3.Access control system
4.Video door phone
5. Biometric attendance system and etc.
Our Advantage:
v ODM: Design & Manufacturing based on your request
v OEM: can use your customized sticker, manual, inner box/color box, master carton
v After-Sales Service: Simple procedure for warranty; Flexible warranty machanism
v 22 years experience, provide stable quality and reasonable price
v Professional sales team, greatly enhance communication efficiency
FAQ:
v Q:Is sample free?
A: Yes, sample is free, but you should bear shipping freight by yourself
v Q:How many days does it take for sample?
A: Normally 1 days, but if no the sample you need in stock, then it takes arround 1 week to prepare sample.
v Q:What kind of certificate do you have for your product?
A: TUV MARK, GS, CB, EMC, LVD for power adapter & LED Driver;
UL for Variable Frequency Drive;
CE & RoHS for power supply.
v Q:What's the lead time for order?
A: 20-25 days
v Q:What's your payment term?
A: Normally, T/T: 30% advance before production, 70% balance before delivery;
For small amount, Western Union/Paypal/Moneygram are acceptable;
For order with large amount, Irrevocable L/C is acceptable.
v Q:What's MOQ?
A: Normally, our MOQ is 500pcs/model, but if we have the model you need in stock, then no MOQ, please contact with our sales for inventory status.
